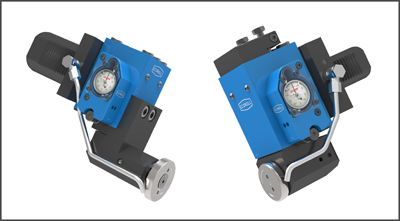

EG90 Tools for flat surfaces and cylindrical as well as conical outer surfaces
- Machining of all symmetrically rotating, straight surfaces as well cylinders, external tapers and internal cones.
- Attainable surface finish Rz < 1 micron.
- Processing of all metallic materials with a maximum hardness of HRC = 45.
- Complete processing in one setting.
- Short primary processing time.
- For use with either CNC-controlled or conventional lathes.
- A special advantage is the overhung layout of the roller in feeding direction, allowing a treating of the work piece close to the shoulders of adjacent faces.
- Tool consists mainly of tool body equipped with a spring assembly that allows the roller head to move with no play and very low friction.
- Additional parts of tool body: Tension rod, tool holder, connection, leaf springs, roller head, roller holder, dial gauge.
- Special version: Position sensor.
